Visualize Decorator


visualize decorator is used to visualize data in a Morph Python cell. The decorator generates a diagram using the visualisation library specified by the following parameters.


  • library: specification of the library to use for visualisation. "matplotlib" or "pyplot" ("plotly") can be specified.

Return value:

  • The decorator wraps the input function and returns the result of the visualization function execution as an HTML string. The resulting diagram is then displayed on the dashboard.

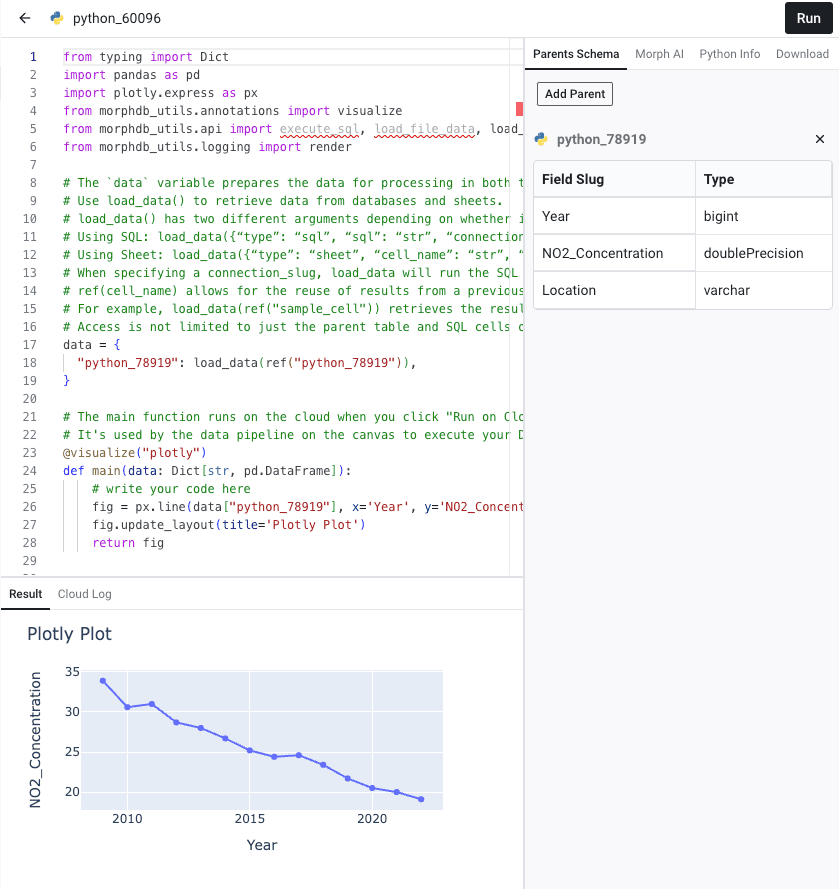

Usage example:

from morphdb_utils.annotations import visualize
def main(data: Dict[str, pd.DataFrame]):
    # write your code here
    fig = px.line(data["python_78919"], x='Year', y='NO2_Concentration', markers=True)
    fig.update_layout(title='Plotly Plot')
    return fig
